Club3D Dokovací stanice Thunderbolt 4 certifikovaný 11v1, 3xUSB-C, 3xUSB-A, PD

Typ príslušenstva:Dokovacie stanice a replikátory.... viac
Bežná cena: NaN  (-NaN%)
157.02 € bez DPH
Na dotaz
188.42 €
ks
Vyberte si zvýhodnené balenie
Množstevné zľavy
Kód: 795231
EAN: 8719214472603
Záruka: 24 Měsíc(ů)
Výrobca: Club 3D
Popis a parametre

Club3D Dokovací stanice Thunderbolt 4 certifikovaný 11v1, 3xUSB-C, 3xUSB-A, PD

Thunderbolt 4 Certified 11-in-1 Docking Station

  • Adopting Goshen Ridge solution
  • Slim compact aluminum design
  • Thunderbolt™ 4 Certified
  • Designed for Thunderbolt™ 4 based PCs and Thunderbolt™ 3 based Macs™ utilizing MacOS™ 11 and later versions(ONLY M1 Pro- and Max Chip).
  • Support Thunderbolt™ 4 max. 40Gbps for high speed data and outstanding video transfer, downward compatible with TBT3,DP™ Alt mode, USB protocol
  • 3x Thunderbolt™ 4 downstream ports, allow you to cascade Thunderbolt™ devices
  • 3x Thunderbolt™ 4 downstream ports support USB Gen2 with max 10Gbps data transfer(NO support for PD power adapter)
  • 3x Thunderbolt™ 4 downstream ports support max. 8K30Hz for one video output or dual 4K60Hz Max.
  • The maximum resolution for connecting a single monitor is also 8K30Hz.
  • Self-powered from DC power adapter with max 96W for host, max 140W for host and Dock
  • Support smart power which enables to flexibly distribute power to PC and Hub in real time according to the consumption of connected devices

TECHNICAL SPECIFICATIONS

OS Support • Windows10™ or above version supported Thunderbolt™ 4 host
• MacOS™ 11 or above version supported Thunderbolt™ 3 host(ONLY M1 Pro- and Max Chip)

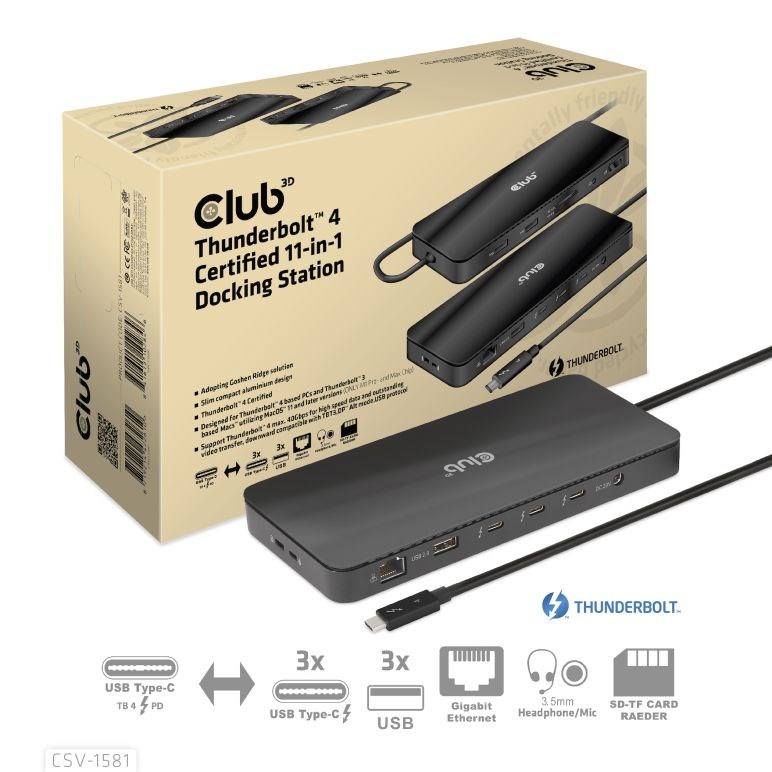

In the box • CSV-1581 Thunderbolt™ 4 Certified 11-in-1 Docking Station
• Power Adapter 20V7.5A(150Watt)
• QIG, Quick Installation Guide

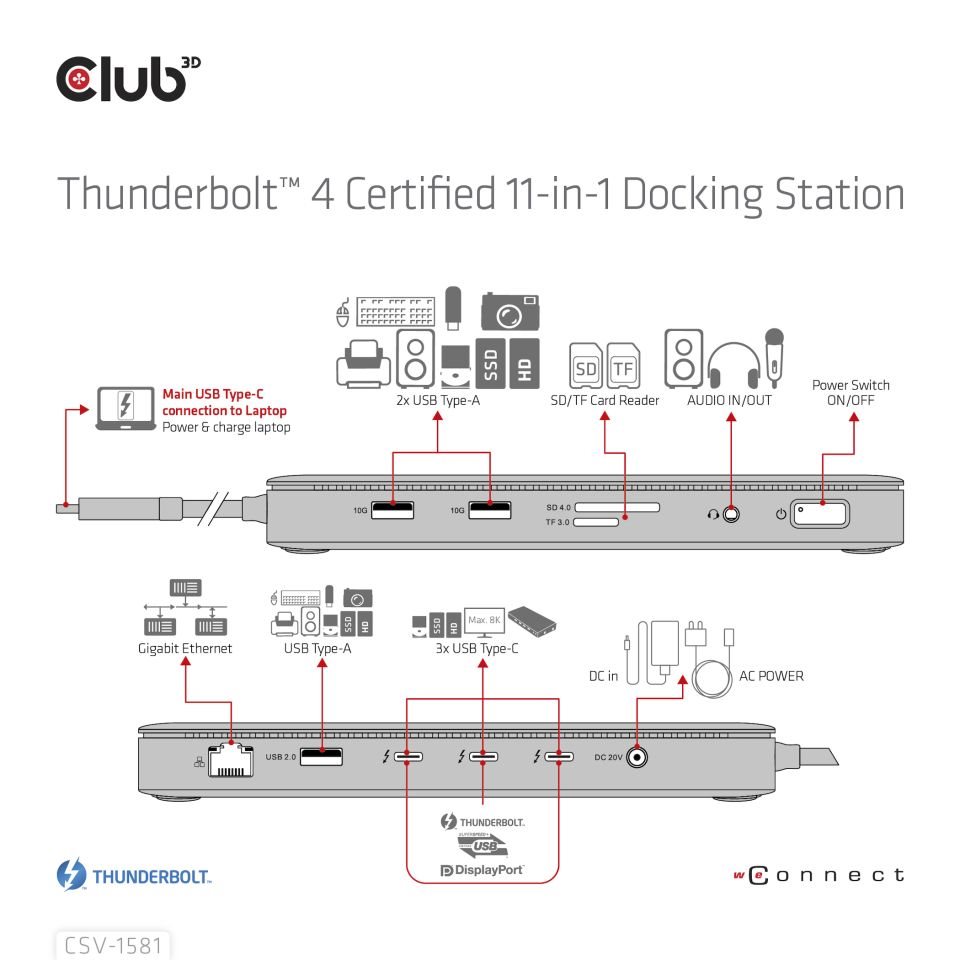

Available Interfaces

Upstream: 1x
• Thunderbolt™ 4 USB Type-C Male (to host)
Support max 96W, 5V/9V/15V@3A, 20V@4.8A Host charging
Downstream:
• 3x Support Thunderbolt™ 4 up to 40Gbps, compatible with Thunderbolt™ 3, USB4, DP Alt mode, USB
• Allow you to cascade Thunderbolt™ devices
• Support max 8K30Hz or dual 4K60Hz video
• Each Thunderbolt™ 4 port supports 15W downstream charging for connected device
• 2x USB Gen2 x2 Type-A, Max. 10Gbps data transmission, downward compatible with lower versions, Max. 900mA downstream charging per port
• 1x USB Gen1 Type-A, Max. 480 Mbps data transmission
Memory Card Slots SD4.0/TF 3.0
• 1x SD supports SD4.0 with max 312Mbps
• 1x TF supports SD3.0 with max 104Mbps
Support 2 card slots to work simultaneously
1x Ethernet RJ45
• Support Gigabit Ethernet,10M/100M/1000M
• Support Wake-On-LAN and Wake-On-WAN
• Light indicator indicates the state, no light when no Internet connected, orange light turns on when network connection is established, green light flashes when transmitting data.
1x Audio JACK 3.5mm
• Stereo output supports 24-bit, 44.1/48/96kHz Sample Rate
• Microphone input supports up to 24bit 96kHz Sample Rate
1x DC Power Jack
• Support smart charging, dynamically distribute power to PC and Hub according to the requirement of the connected devices
• Used to connect 20V 150W DC power supply. Compatible with 19V ~ 22V, 150W or higher power DC power supply
• Max 140W power for host and the DOCK
• Max 96W for host charging

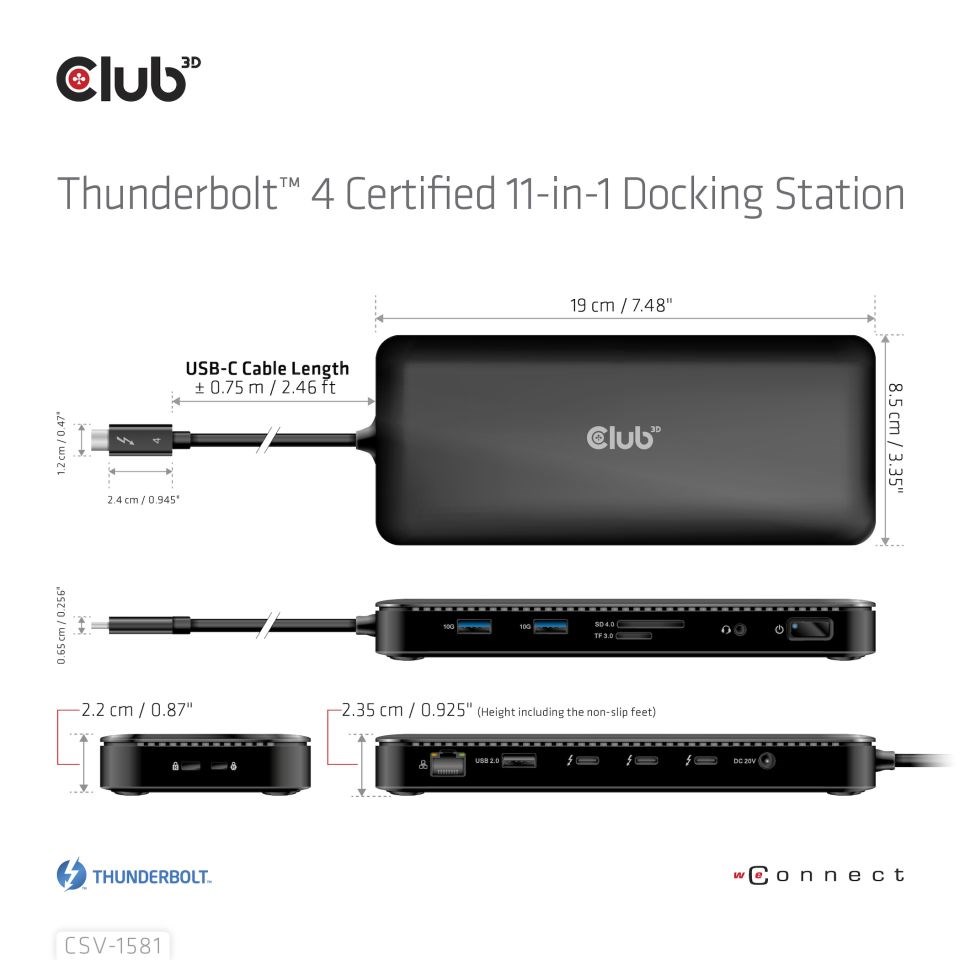

Other info • Box size: 26.7 x 15 x 8.2 cm / 10.51 x 5.9 x 3.23"
• Dock dimensions: 19 x 8 x 2.2 cm / 7.48 x 3.15 x 0.86"
• Power Supply dimensions: 16 x 7.3 x 3.4 cm / 6.3 x 2.87 x 1.34"
• Power Cable Length approx.: 1.8 m / 6 ft
• Product Weight: 360 gr / 2.7 oz
• Power Supply Weight: 720 gr / 25.39 oz
• Box Weight: 171 gr / 6.03 oz
• Total Weight: 1251 gr / 44.12 oz
• Meets ROHS, FCC, and CE EMI requirements


In case of technical questions, you can contact the official support of the Club 3D manufacturer by email: support@club-3d.com. Support works mainly in English, but you can also write a question in Czech and the manufacturer will handle it. The manufacturer will respond within 24 hours. It is also possible to visit the discussion at the link: https://insights.club-3d.com/. Where you can also find useful information on using Club 3D products.
.
