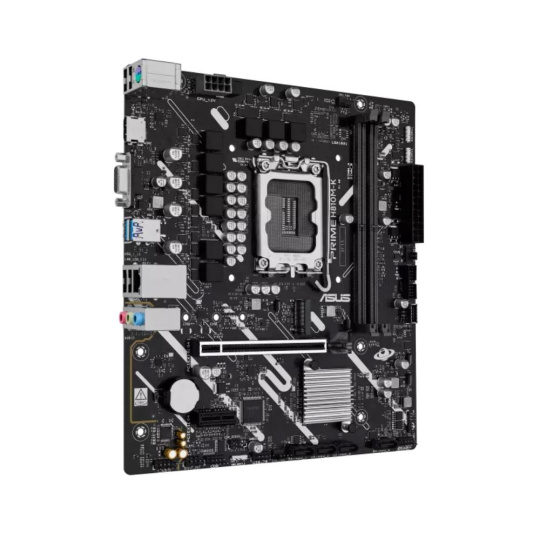

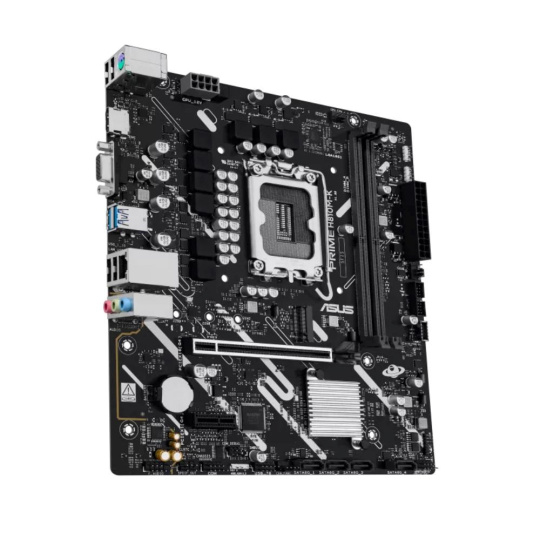

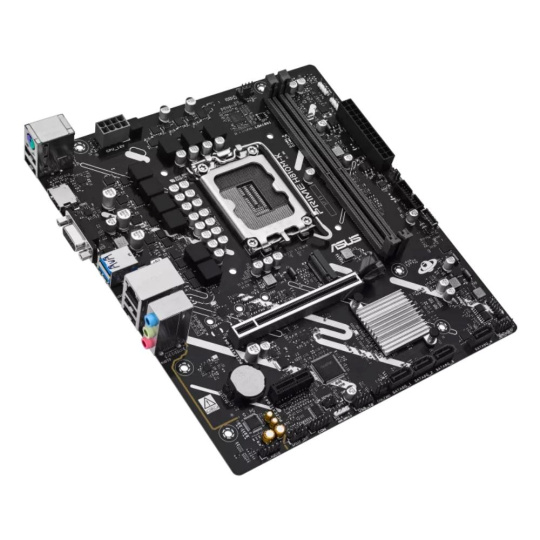

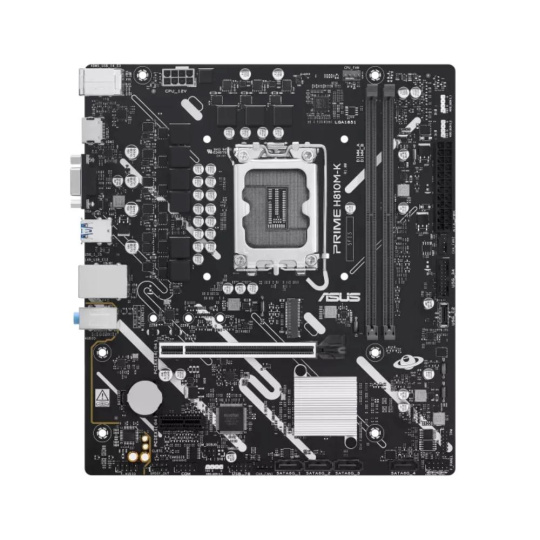

ASUS PRIME H810M-K
ASUS PRIME series motherboards are expertly engineered to unleash the full potential of the latest Intel Core Ultra Processors (Series 2). Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, the PRIME H810M-K motherboard provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features. It’s designed to be Advanced AI PC-ready, offering the power and connectivity needed for demanding AI applications.
CPU
Support Intel® Core™ Ultra Processors (Series 2), LGA1851
Supports Intel® Turbo Boost Technology 2.0
Supports Intel® Turbo Boost Max Technology 3.0
* Refer to https://www.asus.com/support/download-center/ for CPU support list.
* Intel® Turbo Boost Max Technology 3.0 support depends on CPU type.
Chipset
Intel® H810 Chipset
Memory
2 x DIMM slots, max. 128GB, DDR5
Supports up to 6400MT/s
Non-ECC, Un-buffered, Clocked Unbuffered DIMM (CUDIMM)
Dual channel memory architecture
Supports DIMM Fit and DIMM Fit Pro
Supports Intel® Extreme Memory Profile (XMP)
ASUS Enhanced Memory Profile II (AEMP II)
Graphics
1 x VGA port
1 x HDMI™ port
* Graphics specifications may vary between CPU types.
* Supports 4K@60Hz as specified in HDMI 2.1.
* VGA resolution support depends on processor or graphics card.
Expansion Slots
Intel® Core™ Ultra Processors (Series 2)
1 x PCIe 4.0 x16 slot
Intel® H810 Chipset
1 x PCIe 4.0 x1 slot
Storage
Total supports 1 x M.2 slot and 4 x SATA 6Gb/s ports
Intel® H810 Chipset
M.2 slot (Key M), type 2242/2260/2280 (PCIe 4.0 x4 mode)
4 x SATA 6Gb/s ports
Ethernet
1 x Realtek 1Gb Ethernet
ASUS LANGuard
USB
Rear USB (Total 6 ports)
2 x USB 5Gbps (Type-A)
4 x USB 2.0 (Type-A)
Front USB (Total 5 ports)
1 x USB 5Gbps connector (USB Type-C®)
1 x USB 5Gbps header (2 ports)
1 x USB 2.0 header (2 ports)
* USB Type-C® power delivery output max. 5V/3A.
* USB_E1, USB_E2 and USB_E3 share bandwidth.
Audio
Realtek 7.1 Surround Sound High Definition Audio CODEC
Supports Jack-detection, Multi-streaming, Front Panel Jack-retasking
Supports up to 24-Bit/192 kHz playback
Audio Shielding
Premium audio capacitors
Dedicated audio PCB layers
* Front panel HD audio module required for 7.1 output.

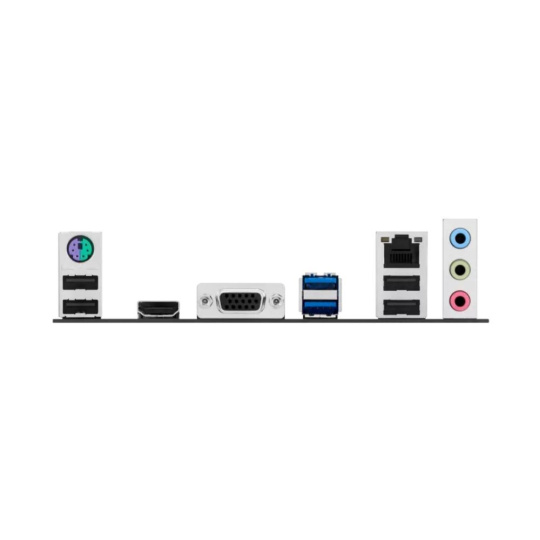

Back Panel I/O Ports
2 x USB 5Gbps (Type-A)
4 x USB 2.0 (Type-A)
1 x VGA port
1 x HDMI™ port
1 x Realtek 1Gb Ethernet port
3 x Audio jacks
1 x PS/2 keyboard/mouse combo port
Internal I/O Connectors
CPU and chassis fan headers
24-pin main power connector
8-pin +12V CPU power connector
1 x M.2 slot
4 x SATA 6Gb/s ports
USB headers including USB Type-C®
Addressable RGB Gen2 headers
Clear CMOS header
Chassis intrusion header
COM port header
Front panel audio header
S/PDIF Out header
SPI TPM header
Front panel system header
Special Features
ASUS 5X PROTECTION III
DIGI+ VRM
LANGuard
Overvoltage protection
SafeSlot Core+
Stainless-steel back I/O
ASUS Q-Design
Q-Dashboard
Q-LED Core
Q-Slot
ASUS Thermal Solution
Aluminum heatsink design
Aura Sync with Addressable RGB Gen 2 headers
Software Features
ASUS Exclusive Software
Armoury Crate
Aura Creator
Aura Sync
Fan Xpert 2+
ASUS DriverHub
ASUS CPU-Z
Adobe Creative Cloud (trial)
Norton 360 Deluxe (trial)
WinRAR (trial)
UEFI BIOS
ASUS CrashFree BIOS 3
ASUS EZ Flash
ASUS UEFI BIOS EZ Mode
ASUS MyHotkey
BIOS
2 x 16MB (2 x 128Mb) Flash ROM
UEFI AMI BIOS
Manageability
WOL by PME
PXE

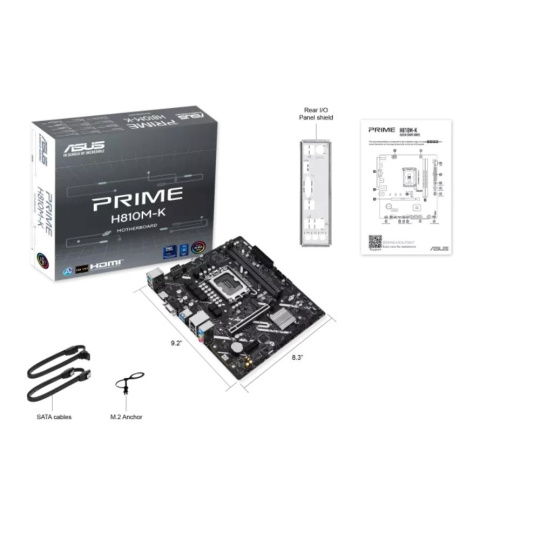

Accessories
2 x SATA 6Gb/s cables

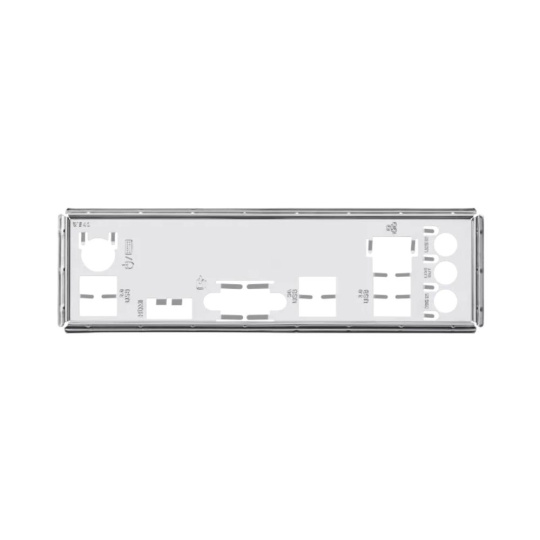

1 x I/O shield
1 x M.2 anchor package
1 x Quick start guide
Operating System
Windows 11 (22H2 & later)
Windows 10 64-bit (21H2 & later)
Form Factor
micro-ATX Form Factor
9.2 inch x 8.3 inch (23.4 cm x 21.1 cm)
