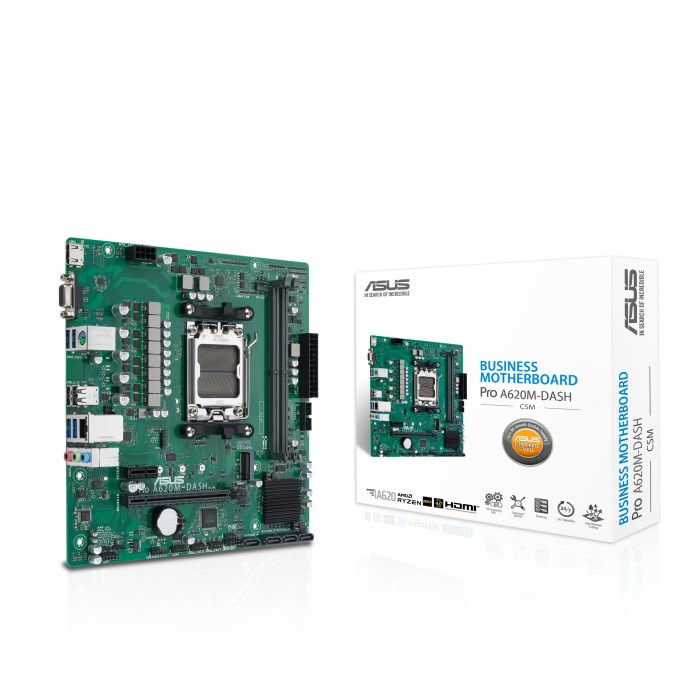

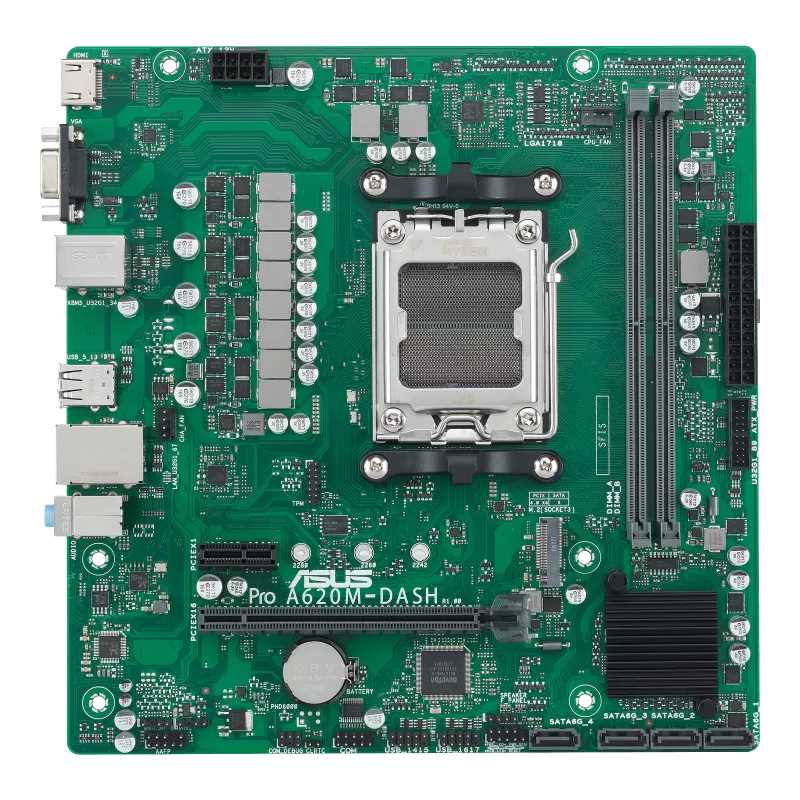

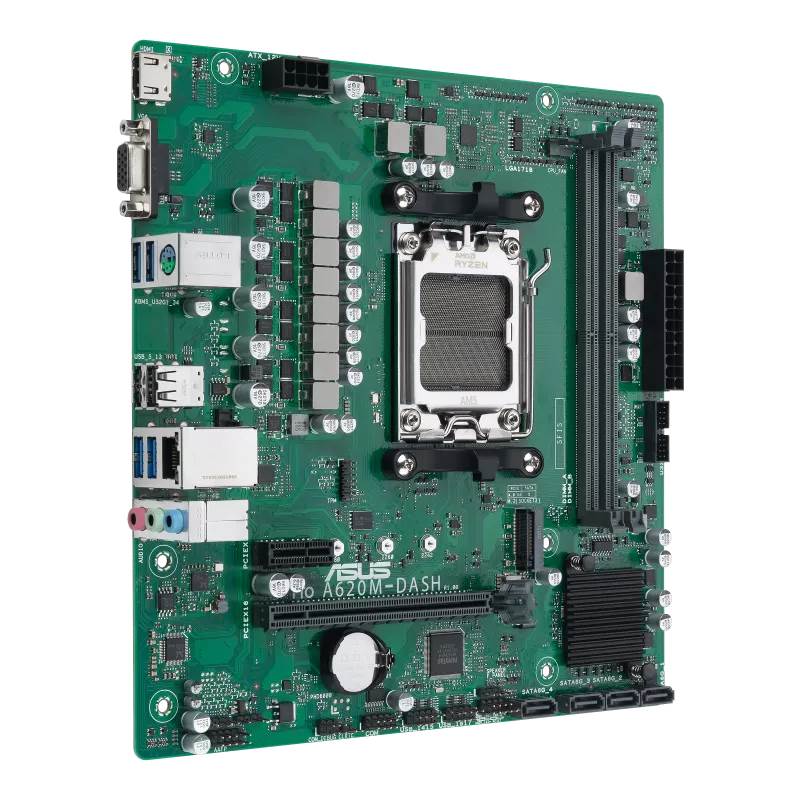

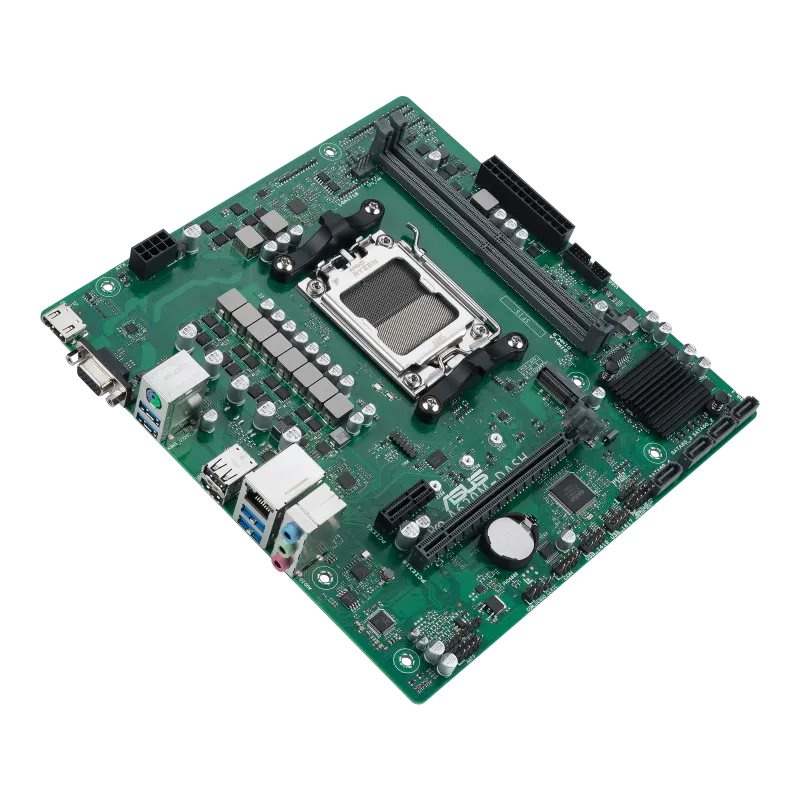

ASUS MB Sc AM5 PRO A620M-DASH-CSM, AMD A620, 2xDDR5, 1xHDMI, 1xVGA, mATX
AMD A620 Micro-ATX business motherboard with enhanced security, reliability, manageability and serviceability
AMD AM5 socket: Ready for AMD Ryzen™ 7000 Series Desktop processors
ASUS CSM program: A stable motherboard supply, end-of-life notifications, and IT software ASUS Control Center Express for business motherboards
Remote IT management: DASH hardware ready for capable of DASH software
Enhanced system security: A self-recovering BIOS
Consistent and reliable performance: High-quality components and rigorous testing to help ensure durability in harsh environments
Efficient management and customization: An event log and commercial BIOS kit to enable easy maintenance
Better serviceability: Q-LED Core diagnostic display and COM debug header to facilitate building and support processes
AMD Socket AM5 for AMD Ryzen™ 7000 Series Desktop Processors* Supports up to AMD 120W CPU * Refer to www.asus.com for CPU support list.
AMD A620 Chipset
2 x DIMM slots, Max. 96GB, DDR5 6400+(OC)/6200(OC)/6000(OC)/5800(OC)/5600(OC)/5400(OC)/5200/5000/4800 Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports AMD Extended Profiles for Overclocking (EXPO™) * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/. * Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
1 x VGA port 1 x HDMI™ port** * Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications. ** Supports 4K@24Hz as specified in HDMI 1.4.
AMD Ryzen™ 7000 Series Desktop Processors* 1 x PCIe 4.0 x16 slot (supports x16 mode) AMD A620 Chipset 1 x PCIe 3.0 x1 slot * Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/). - To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.
Total supports 1 x M.2 slot and 4 x SATA 6Gb/s ports* AMD Ryzen™ 7000 Series Desktop Processors M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) AMD A620 Chipset 4 x SATA 6Gb/s ports * AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/10 and SATA RAID 0/1/10.
1 x Realtek 8111EPV Gigabit LAN controller supports DASH ASUS LANGuard *Hardware ready for capable of DASH software.
Rear USB (Total 6 ports) 4 x USB 3.2 Gen 1 (5G) ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A) Front USB (Total 6 ports) 1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports
Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

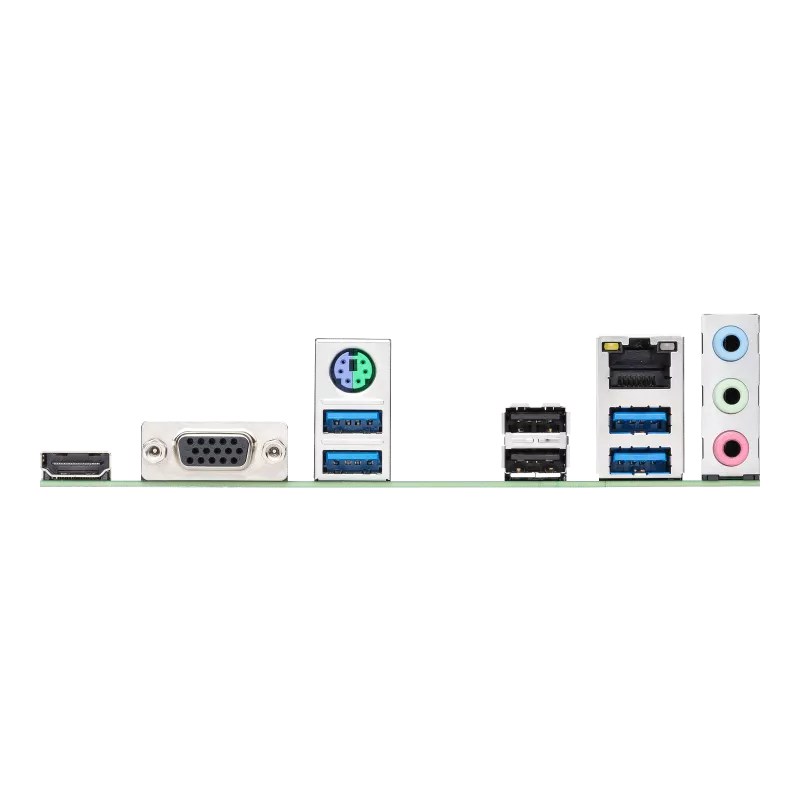

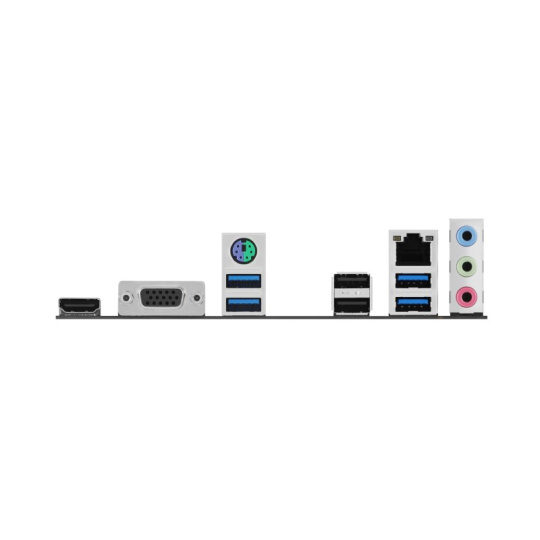

Back Panel I/O Ports
4 x USB 3.2 Gen 1 (5G) ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A) 1 x VGA port 1 x HDMI™ port 1 x Realtek 1Gb Ethernet port 3 x Audio jacks 1 x PS/2 Keyboard/Mouse combo port
Internal I/O Connectors
Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin Chassis Fan header Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 1 x M.2 slot (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous 1 x Clear CMOS header 1 x Chassis Intrude header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x S/PDIF Out header 1 x Speaker header 1 x SPI TPM header (14-1pin) 1 x 10-1 pin System Panel header
ASUS Q-Design - Q-DIMM - Q-LED Core - Q-Slot ASUS Thermal Solution - Aluminum heatsink design Bespoke Motherboard Design & Business Focused Features - ASUS Self Recovering BIOS - ASUS Event Log - ASUS Commercial BIOS kit* - Anti-Moisture Coating - 24/7 Reliability - Overcurrent Protection * Please contact local FAE for commercial BIOS kit.
ASUS Exclusive Software IT Management software supported - ASUS Control Center Express(ACCE)
256 Mb Flash ROM, UEFI AMI BIOS
WOL by PME, PXE
Cables 2 x SATA 6Gb/s cables Miscellaneous 1 x I/O Shield 1 x Screw package for M.2 SSD Documentation 1 x ACC Express Activation Key Card 1 x User guide
