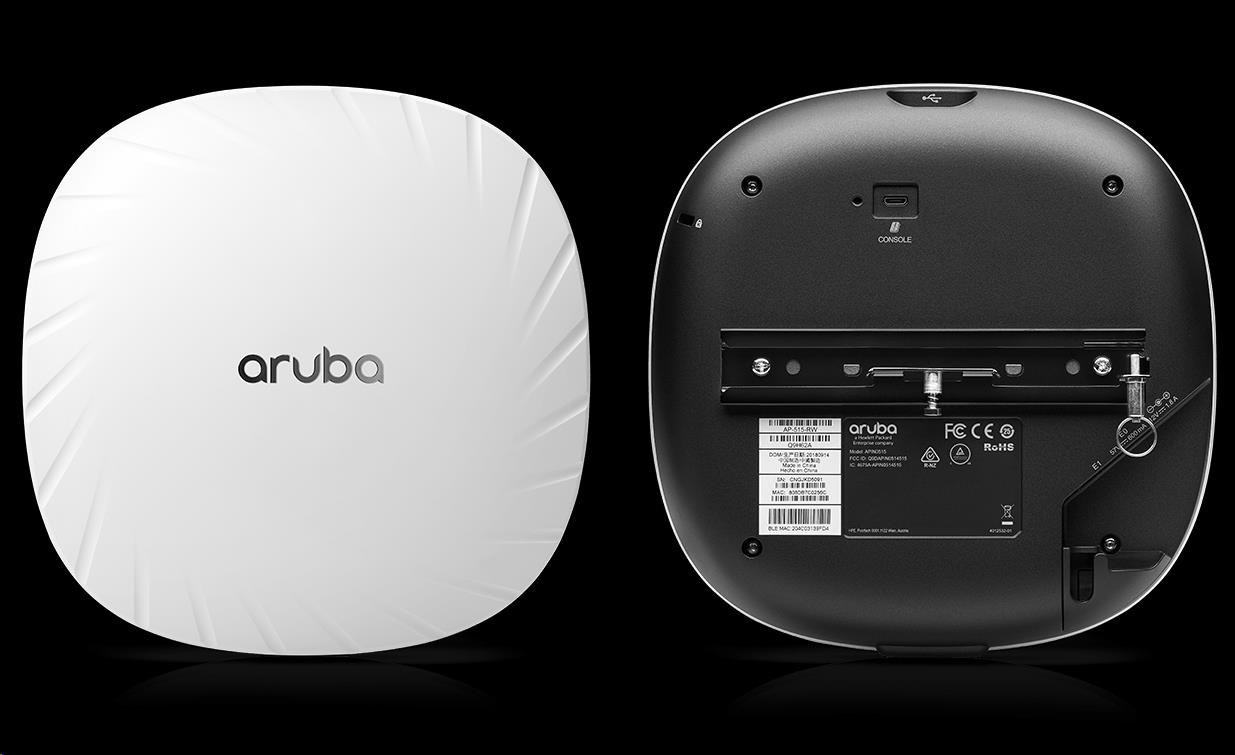

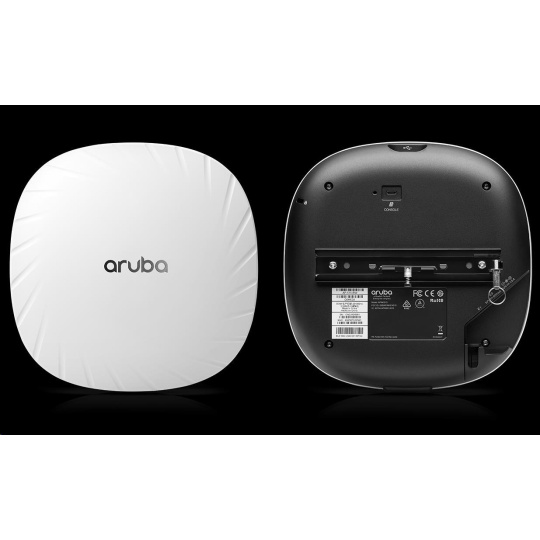

Aruba AP-515 (RW) Dual Radio 4x4:4 + 2x2:2 802.11ax Internal Antennas Unified Campus AP RENEW Q9H62A

Série přístupových bodů Aruba 510 s technologií 802.11ax vysokorychlostní přístup pro mobilní zařízení. Rychlosti dosahují až 4.8 Gb/s v pásmu 5GHz a až 575 Mb/s v pásmu 2,4Ghz. Každý AP podporuje až 256 klientských zařízení.

Odkaz na web výrobce: https://www.arubanetworks.com/assets/ds/DS_AP510Series.pdf

SPECIFIKACE

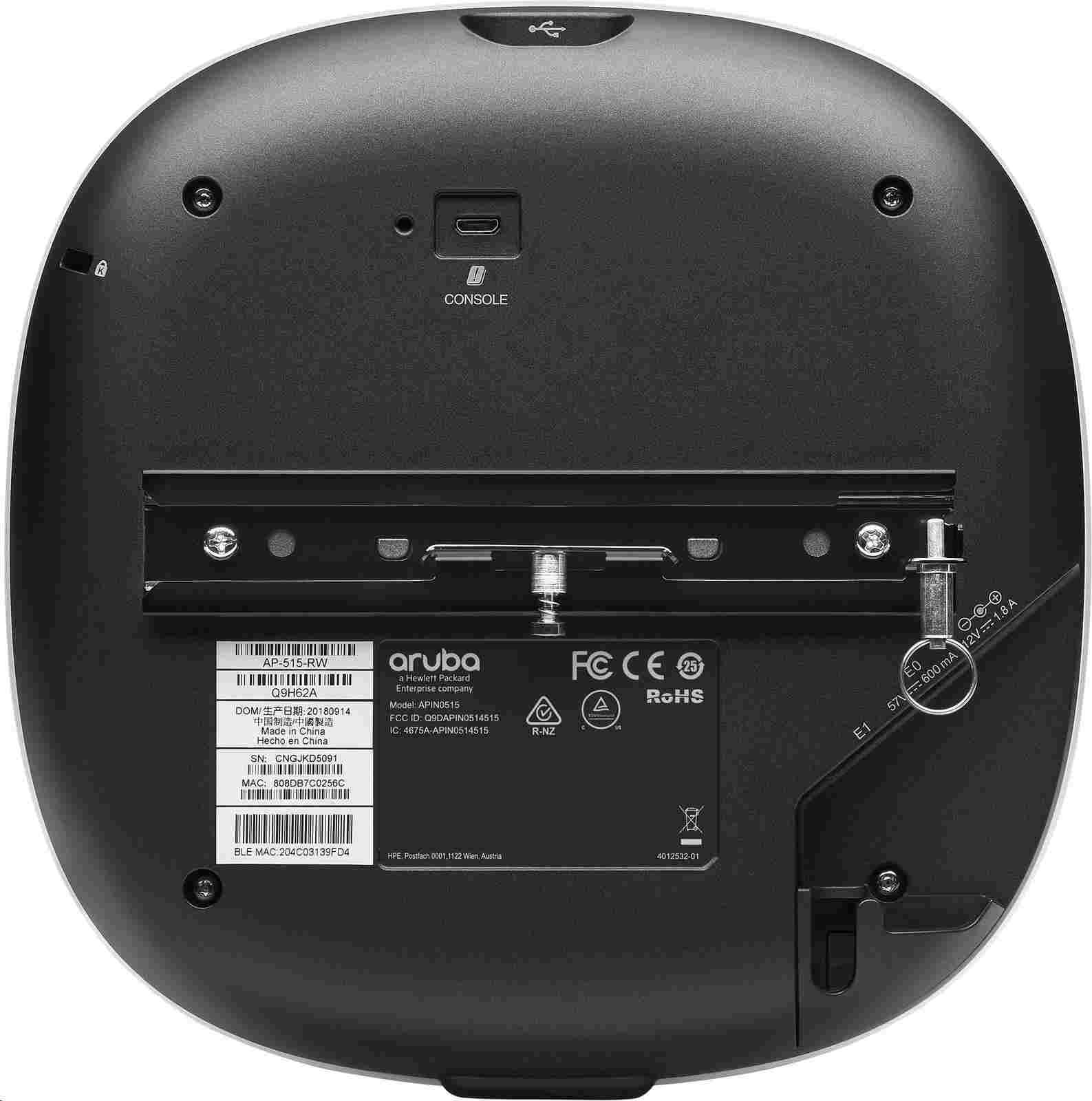

Rozhraní

• E0: HPE SmartRate port (RJ-45, maximum negotiated speed 2.5Gbps)
• E1: 10/100/1000BASE-T Ethernet network interface (RJ-45)
• DC power interface: 12Vdc (nominal, +/- 5%), accepts 2.1mm/5.5mm center-positive circular plug with 9.5mm length
• USB 2.0 host interface (Type A connector)
• Bluetooth 5 and Zigbee (802.15.4) radio
• Integrated vertically polarized omnidirectional antenna with roughly 30 degrees downtilt and peak gain of 3.5dBi (AP-515) or 4.9dBi (AP-514)
• Visual indictors (two multi-color LEDs): for System and Radio status
• Reset button: factory reset, LED mode control (normal/off)

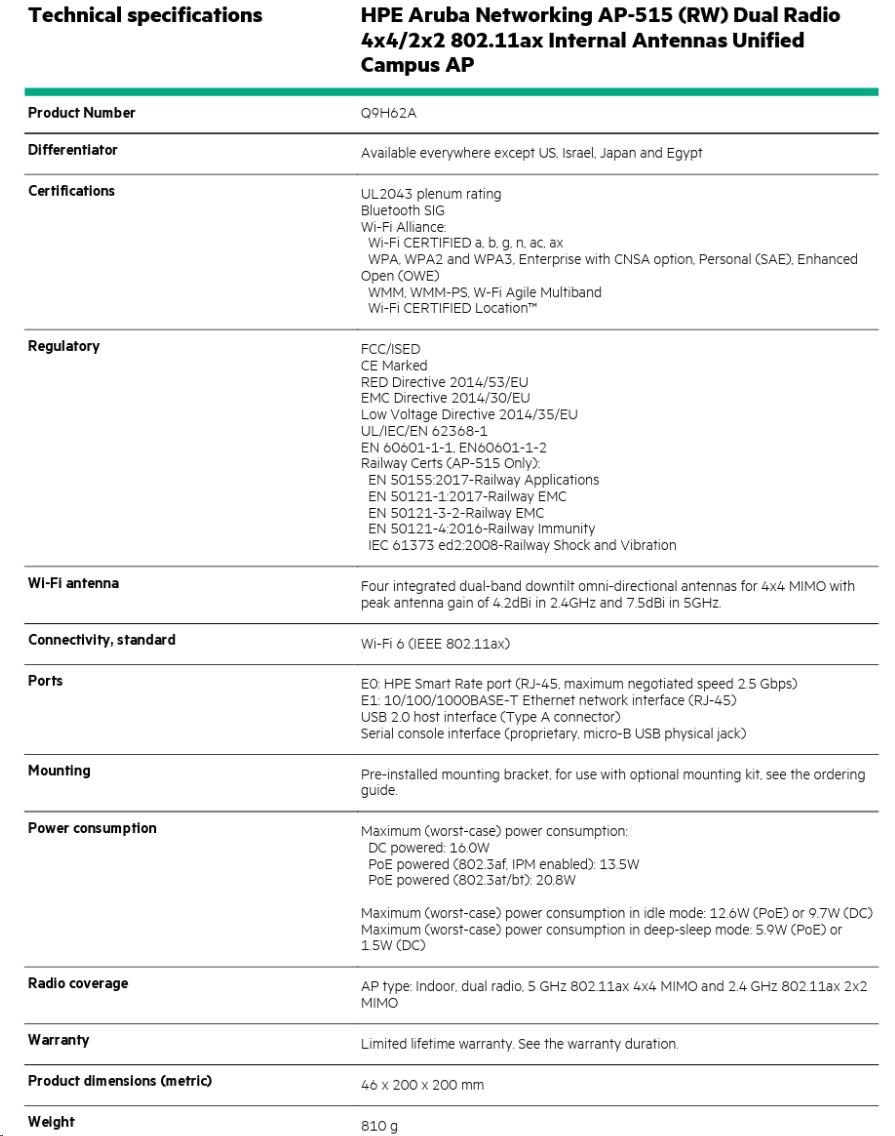

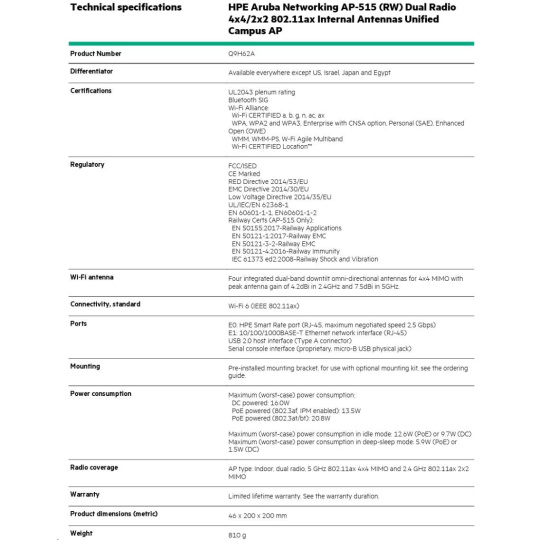

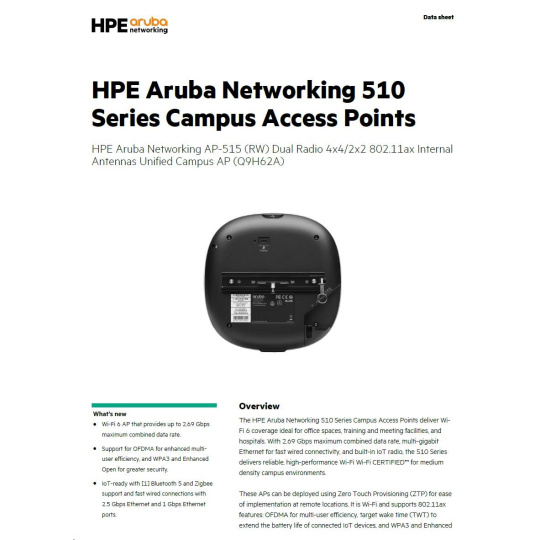

  HPE Aruba Networking AP-515 Specifications


HPE Aruba Networking AP-515 (RW) Dual Radio 4x4/2x2 802.11ax Internal Antennas

Product Number: Q9H62A

Certifications

• UL2043 plenum rating

• Bluetooth SIG

• Wi-Fi Alliance: Wi-Fi CERTIFIED a, b, g, n, ac, ax, WPA/WPA2/WPA3, Enterprise with CNSA option, Personal (SAE), Enhanced Open (OWE), WMM, WMM-PS, Wi-Fi Agile Multiband, Wi-Fi CERTIFIED Location™

• Regulatory: FCC/ISED, CE Marked, RED Directive 2014/53/EU, EMC Directive 2014/30/EU, Low Voltage Directive 2014/35/EU, UL/IEC/EN 62368-1, EN 60601-1-1, EN60601-1-2

• Railway Certs (AP-515 Only): EN 50155:2017, EN 50121-1:2017, EN 50121-3-2, EN 50121-4:2016, IEC 61373 ed2:2008

Wi-Fi Antenna

Four integrated dual-band downtilt omni-directional antennas for 4x4 MIMO (2.4GHz: 4.2dBi, 5GHz: 7.5dBi)

Connectivity

• Standard: Wi-Fi 6 (IEEE 802.11ax)

• Ports:

  • E0: HPE Smart Rate port (RJ-45, max 2.5 Gbps)


  • E1: 10/100/1000BASE-T Ethernet network interface (RJ-45)


  • USB 2.0 host interface (Type A connector)


  • Serial console interface (micro-B USB)



Mounting

Pre-installed bracket, optional mounting kit available. See ordering guide.

Power Consumption

• Max (worst-case): DC powered: 16.0W, PoE powered (802.3af): 13.5W, PoE powered (802.3at/bt): 20.8W

• Idle mode: 12.6W (PoE), 9.7W (DC)

• Deep-sleep mode: 5.9W (PoE), 1.5W (DC)

Additional Specifications

• Radio coverage: Indoor, dual radio, 5GHz 802.11ax 4x4 MIMO, 2.4GHz 802.11ax 2x2 MIMO

• Warranty: Limited lifetime warranty. See warranty duration.

• Dimensions (mm): 46 x 200 x 200

• Weight: 810 g
